Switchboard R-FVE-H

EAN: 8594217350291 SKU: R-FVE-H

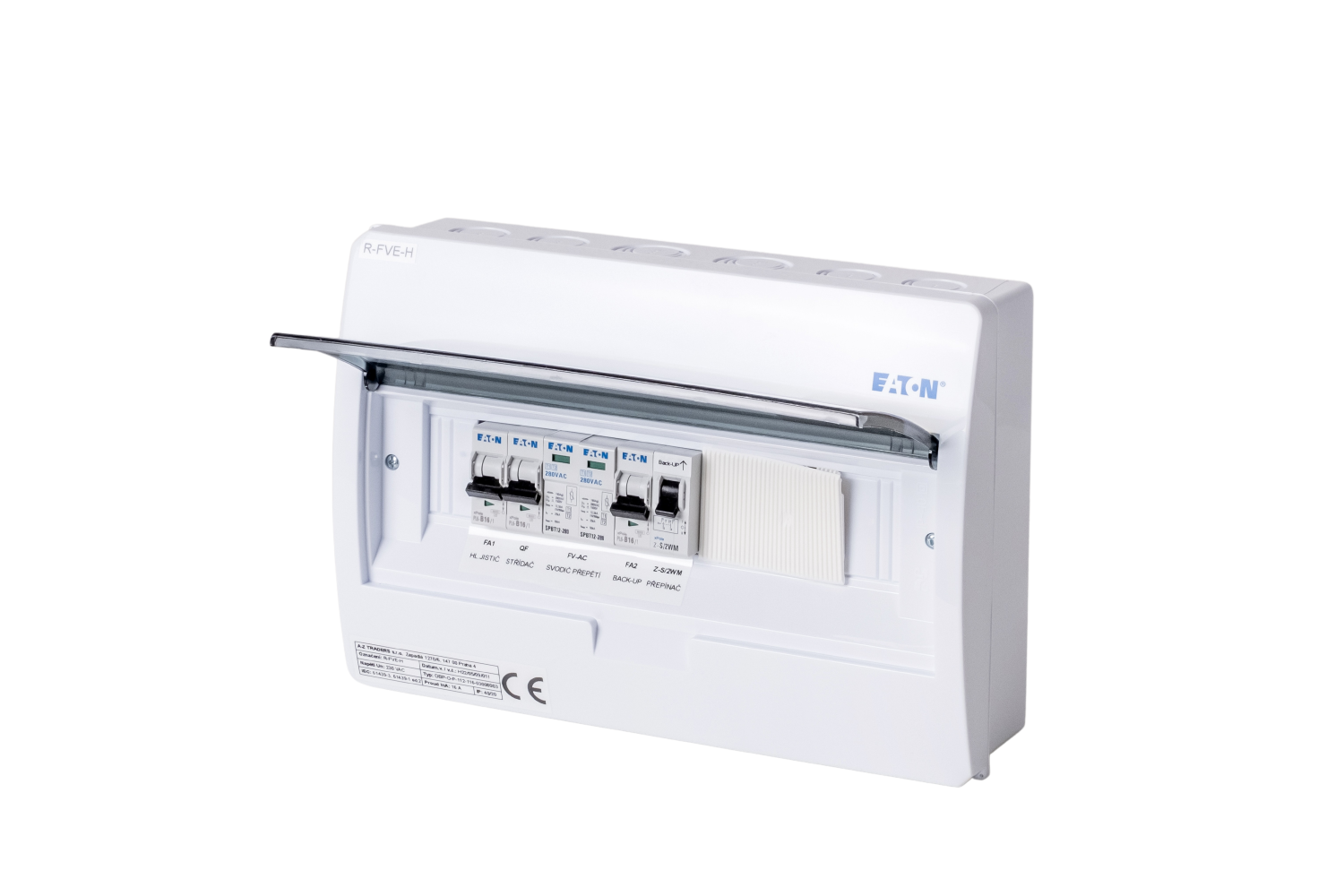

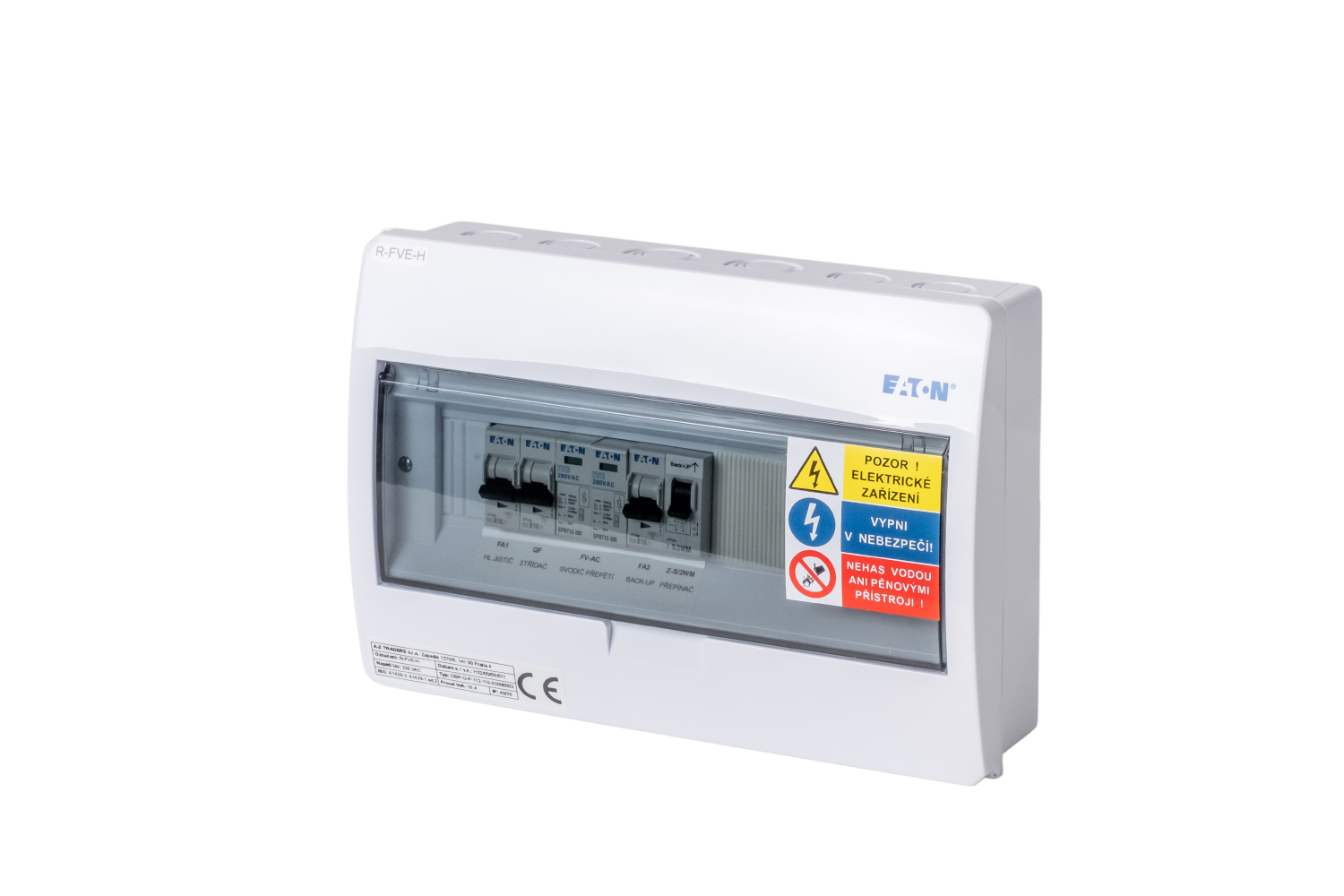

AC switchgear designed for wall mounting, IP40/20 serving as an input/output switchgear (at the inverter) for single-phase PV power plants (typically Goodwe 3648-EM and 3648D-ES inverter) to ensure the protection of the outputs and outputs including the switch in case malfunction or switched off inverter.

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

Its advantage is its small size, the possibility of "stacking" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where space is a problem.

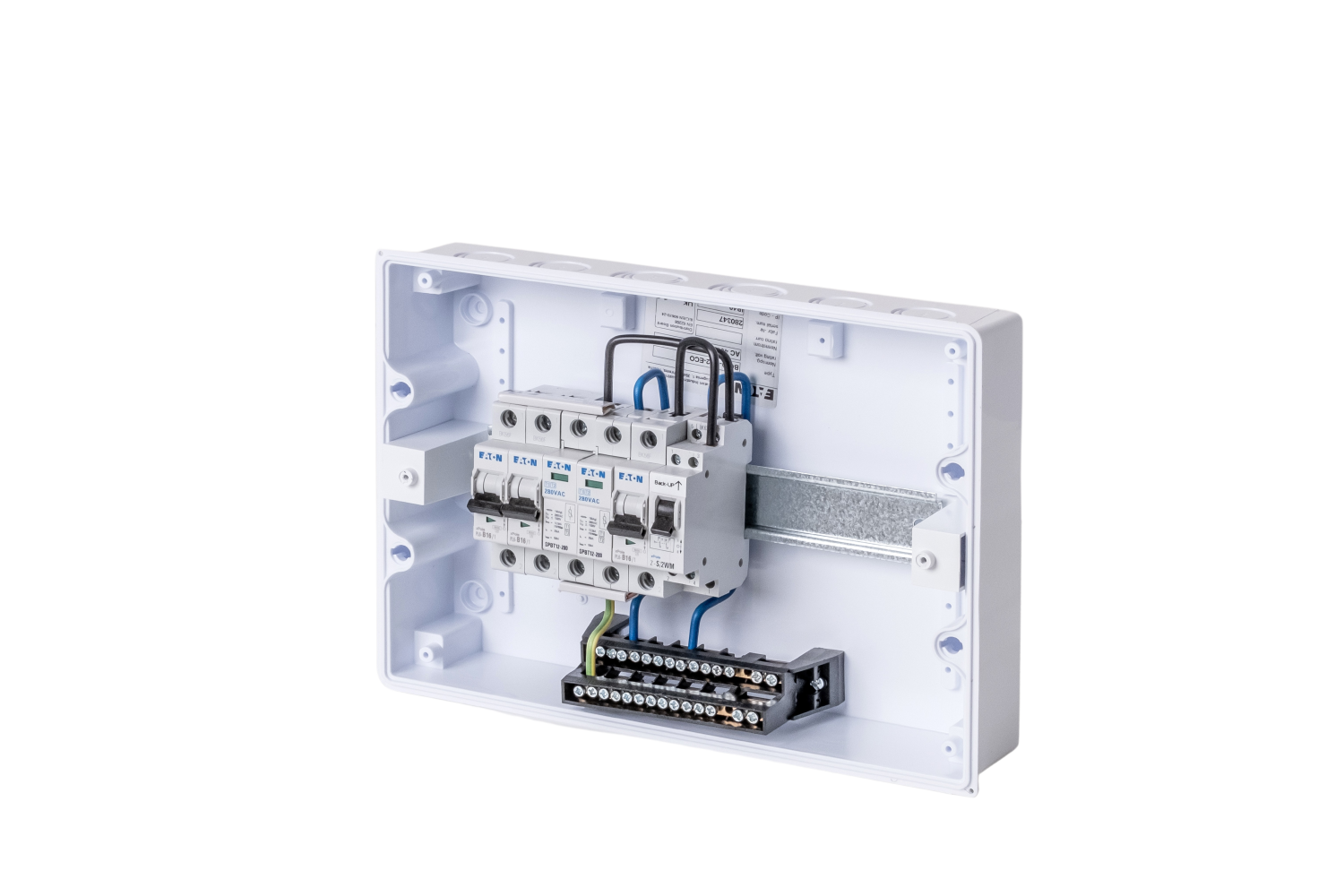

The switchboard is fitted with an AC overvoltage arrester, B16/1 circuit breakers to protect the input to the inverter and the output for the backup circuits, as well as a manual two-pole switch for bridging the backup circuits during service or shutdown of the inverter.

Suitable to combine with the switchgear R-FVE-DC1, R-FVE-DC2 and R-FVE-BAT100 for the DC part of the installation and R-FVE-Z1 for the output with sockets.

Main parameters

Use	Manual full back-up systems of the whole house
Inverter type	Without measurement / It is not placed in the switchboard

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Inverter parameters

Inverter power (max. kW)	3.7kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	No

Distribution board layout

Option of two inverters

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	1

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules	1
248346	EATON	ZS/2WM	Switch 2-way contacts, 16A	1
158306	EATON	SPBT12-280/1	Surge arrester class T1+T2 (B+C), 1-pole	2
286521	EATON	PL6-B16/1	Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=16A	3
