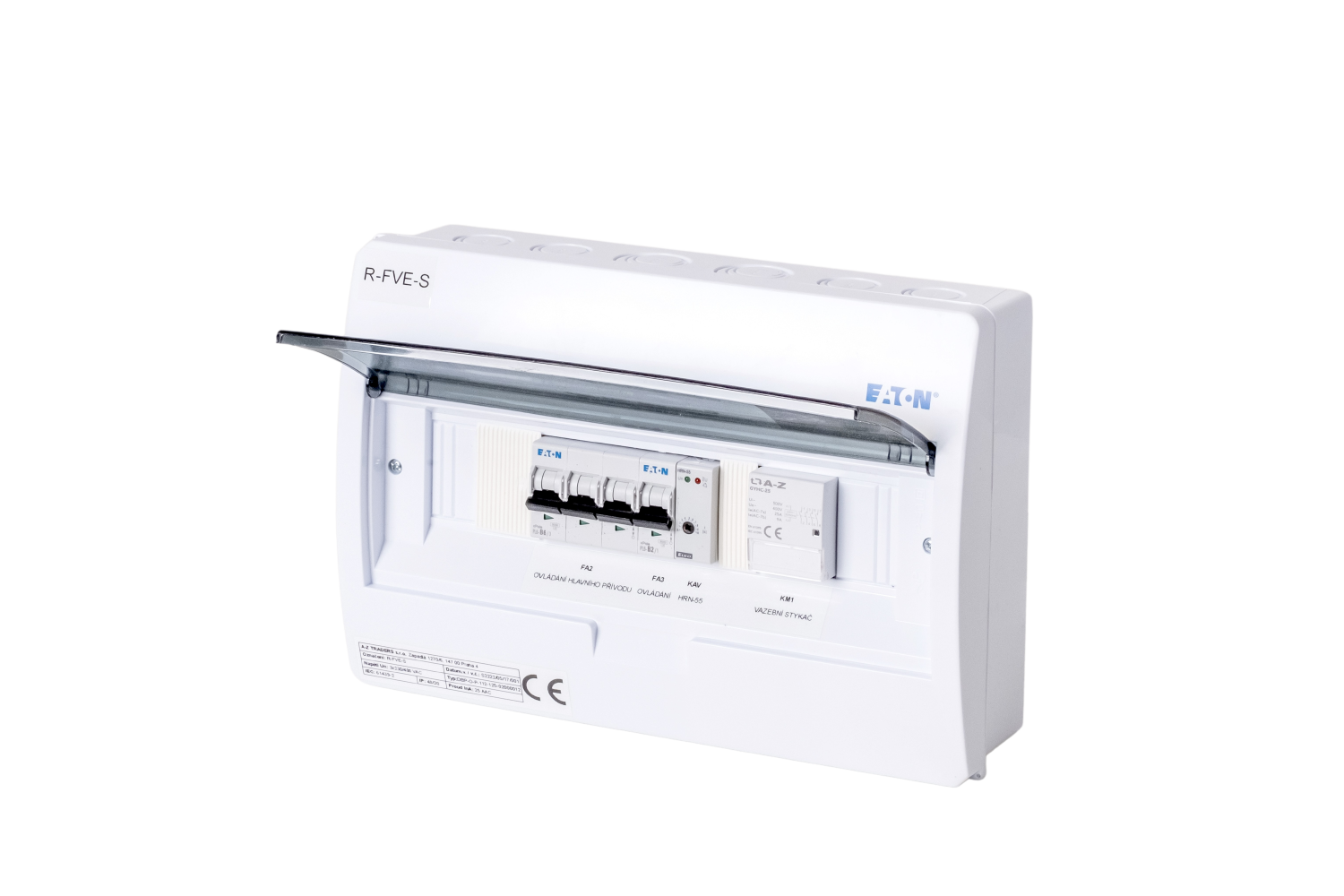

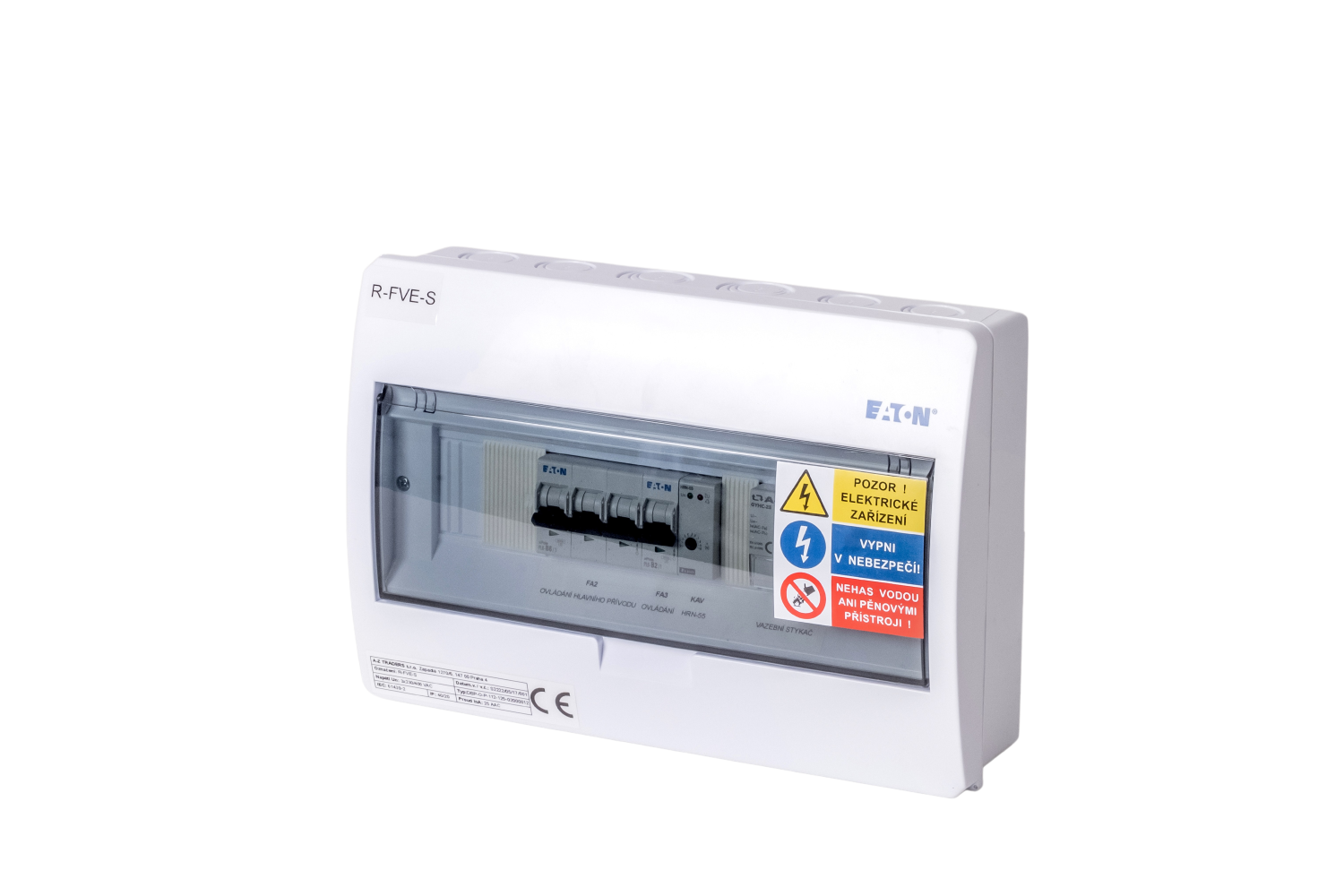

Switchboard R-FVE-S

EAN: 8594217350376 SKU: R-FVE-S

AC switchboard designed for intended for wall mounting, IP40/20 serving as input switchboard (to heat pumps) for three-phase connection of the pump (typically IDM).

More information

Prices are visible only to registered users.

PRODUCT DESCRIPTION

Product description

AC switchboard designed for intended for wall mounting, IP40/20 serving as input switchboard (to heat pumps) for three-phase connection of the pump (typically IDM).

Its advantage is its small size, the possibility to "stack" with other AC switchboards next to each other or under each other, which makes it possible to install them even in areas where there is a problem with a lack of free space.

The switchboard is fitted with circuit breakers C25/3, B13/3, B13/1 and B16/3 for securing the input to the compressor, heating rod, regulator and socket.

Main parameters

Use	Systems without backup circuits
Inverter type	Without measurement / It is not placed in the switchboard

Inverter brands

Suitable for Growatt	Yes
suitable for Solis	Yes
Suitable for GoodWe	Yes
Suitable for DEYE	Yes
Suitable for Solax	Yes

Inverter parameters

Inverter power (max. kW)	11kW
Suitable for hybrid inverters	Yes
Suitable for mains inverters	No

Other parameters

UV resistance	No
IP coverage	40/20
Inverter circuit breaker	16
Number of phases	3

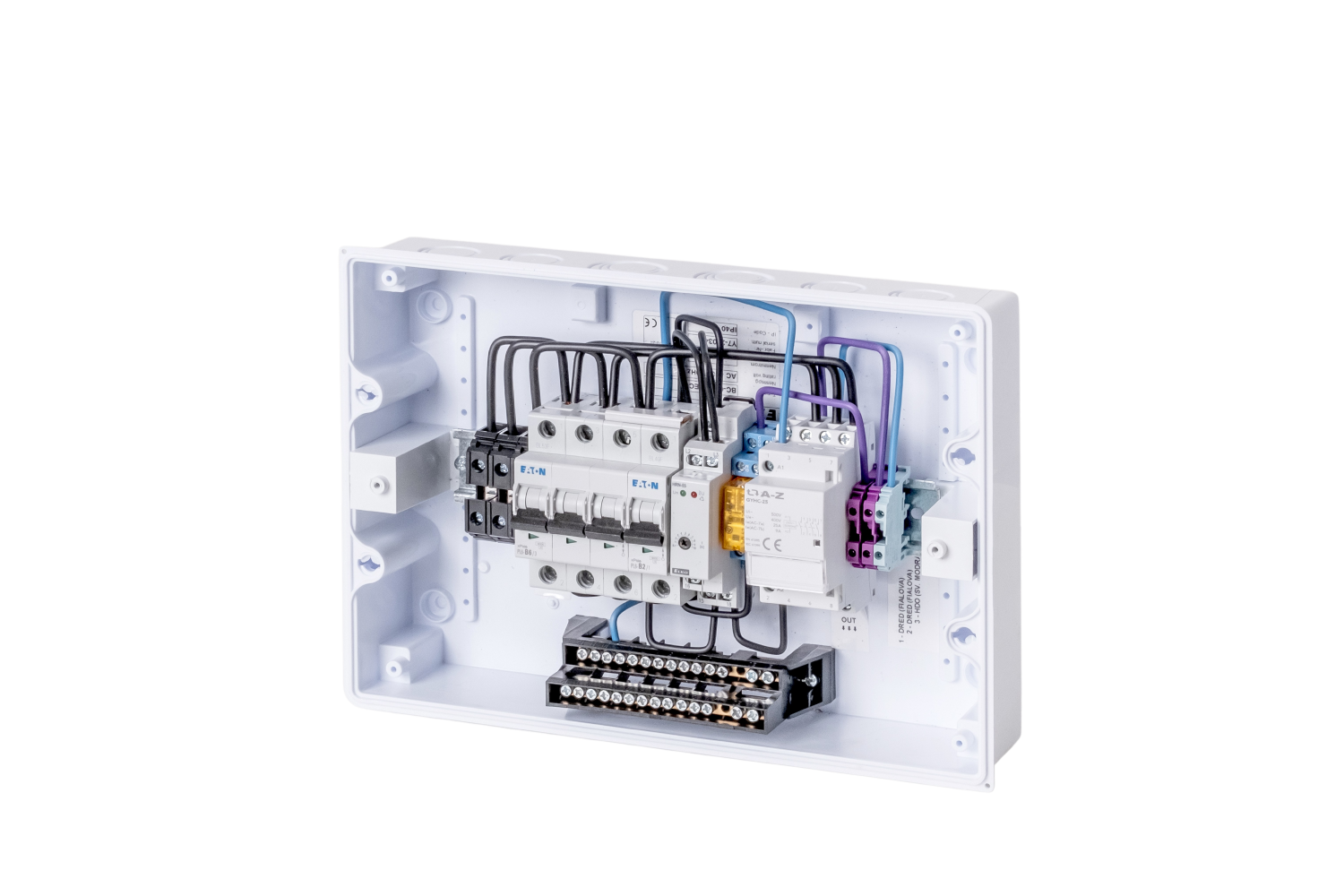

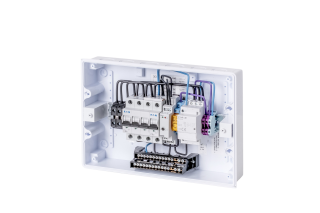

Code	Manufacturer	Product	Description	Number of pieces
280347	EATON	BC-O-1/12-ECO	Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules	1
286586	EATON	PL6-B6/3	Circuit breaker PL6, characteristic B, 3-pole, Icn=6kA, In=6A	1
286516	EATON	PL6-B2/1	Circuit breaker PL6, characteristic B, 1-pole, Icn=6kA, In=2A	1
40528230 + 95.65	FINDER	2P/8A 230VAC 40.52.8.230.0000	Relay 1NC, 1NO	1
3722	ELKO EP	HRN-55	Monitoring voltage relay	1
248847	EATON	Z-SCH230/25-40	Installation contactor, 230 VAC/ 50 Hz, 4S, 25 A	1
